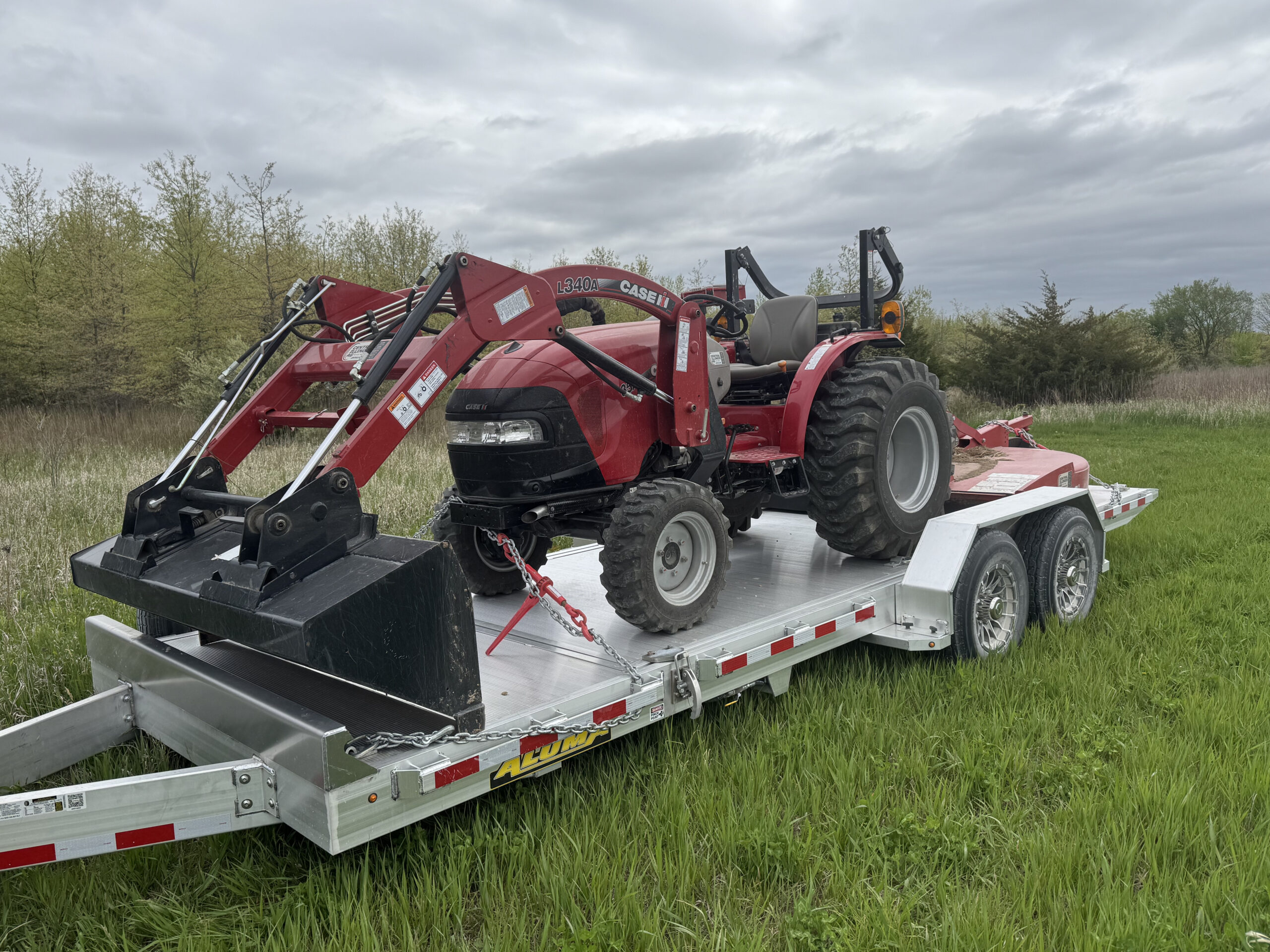

8200-14K TILT Series
All aluminum construction
(excluding axle & coupler)
| Model | Weight | Bed Size | Tires |
| 8220-14K-TILT-4SF-TA-EL | 2650# | 79″ x 200″ | 16″ |
| 8222-14K-TILT-4SF-TA-EL | 2750# | 79″ x 224″ | 16″ |
| 8222-14K-TILT-6SF-TA-EL | 2750# | 79″ x 248″ | 16″ |
Covered under our industry-leading all-inclusive 5 year warranty!
Equipment Details
Standard
| 2-7000# Rubber torsion axles – Easy lube hubs |
| Electric brakes, breakaway kit |
| ST235/80R16 Radial tires |
| Aluminum wheels, 8-6.5 BHP |
| Removable aluminum fenders |
| Extruded aluminum floor |
| 5 1/2″ Bump rail |
| A-Framed aluminum tongue, 56.5″ long with 2-5/16″ coupler |
| Stake pockets and rub rail |
| 30″ Beavertail |
| 6) Bolt-on heavy tie downs |
| 10K Spring-loaded drop leg jack |
| LED Lighting package, safety chains |
| Loading angle: 12° / 11.5° / 12.5° |
| Overall width = 101.5″ |
| Overall length = 288″ / 308″ / 308″ |
Optional
| Part # | Description |
|---|---|
| 20-0001626 | Airdam |
| 50-0004765 | Extra stake pockets |
| 60-0000679 | Bolt-on heavy duty tie-down |
| 60-0001496 | 16″ Aluminum spare wheel & tire |
| 40-0000060 | Spare tire mounting bracket, side mount |
| 20-0001602 | Package, Storage Box 14K Series |
High quality parts and accessories from Aluma add functionality and versatility to your trailer. Click here to see more!
