8012S-8014S-8015S Utility Trailer
All aluminum construction
(excluding axle & coupler)
| Model | Weight | Bed Size | Tires |
|
8012S-EL-TG (Standard Tailgate) |
860# |
81″ x 149“ |
15″ |
|

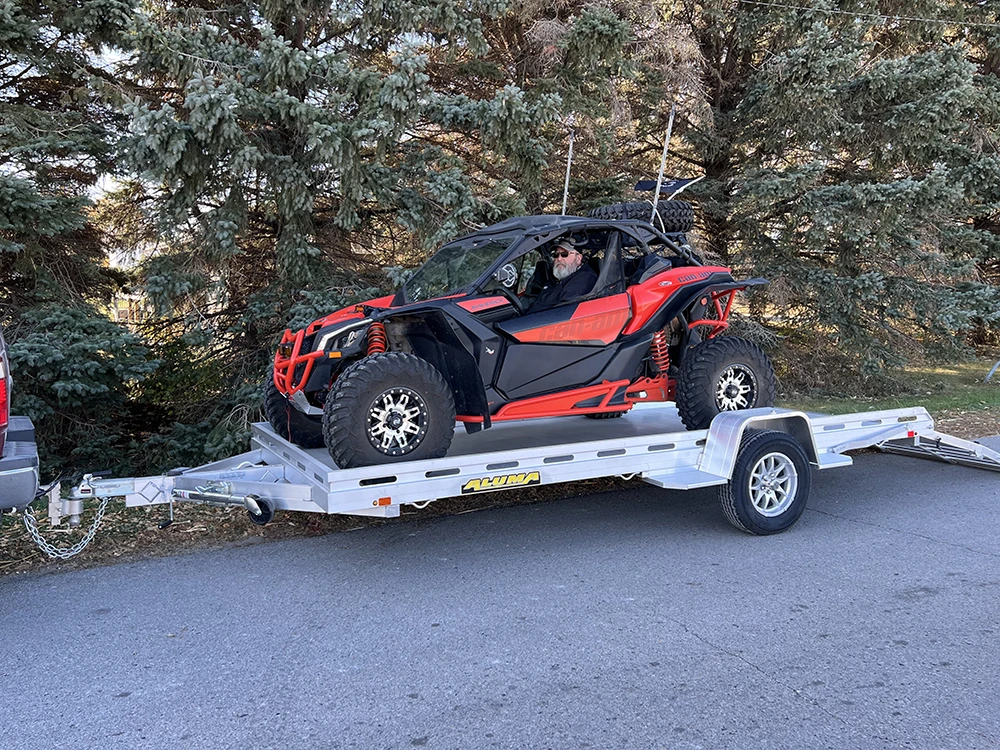

8012S-EL-BT (Bi-fold Tailgate) |
890# |
81″ x 149“ | 15″ |
|
8014S-EL-TG (Standard Tailgate) |
910# |
81″ x 172.5“ |
15″ |
|
8014S-EL-BT (Bi-fold Tailgate) |
940# |
81″ x 172.5“ | 15″ |
|

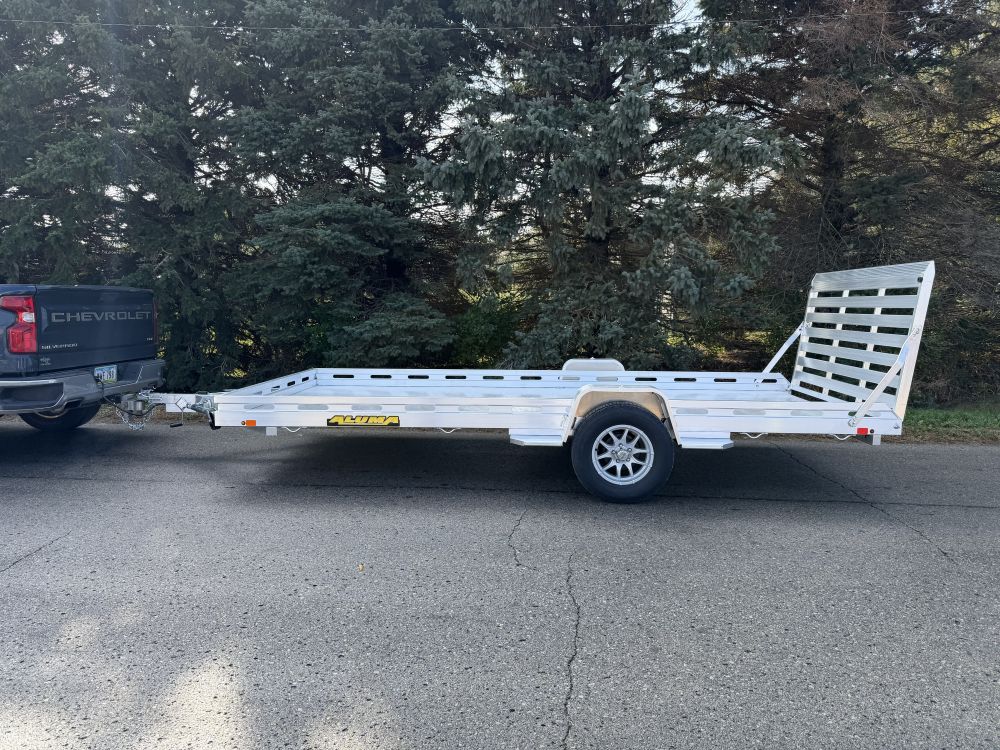

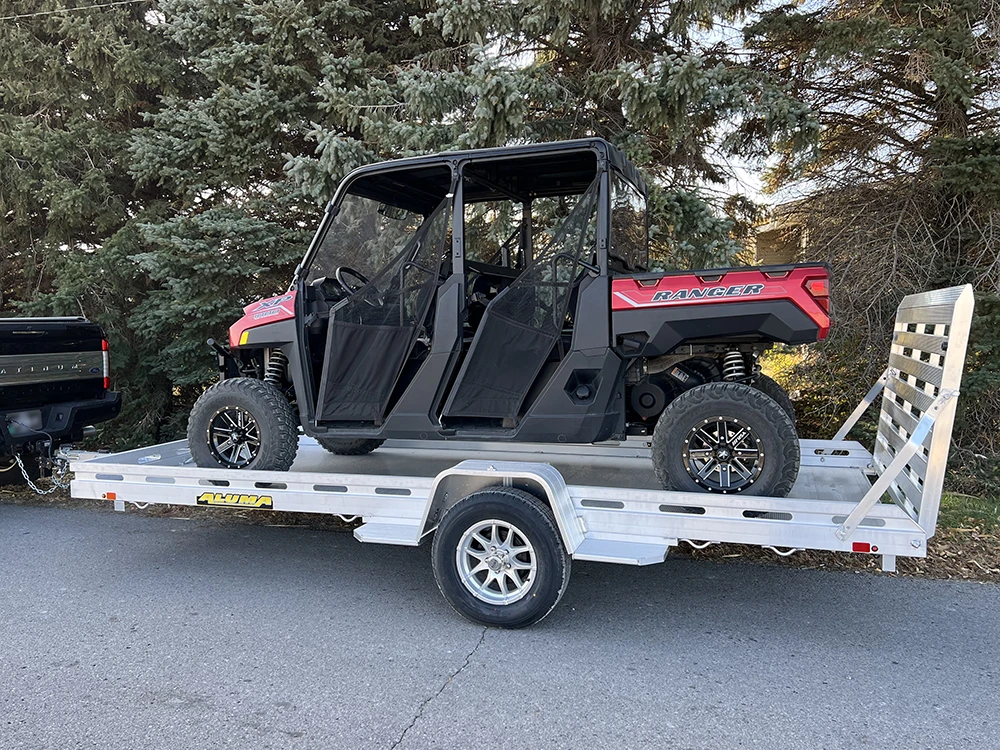

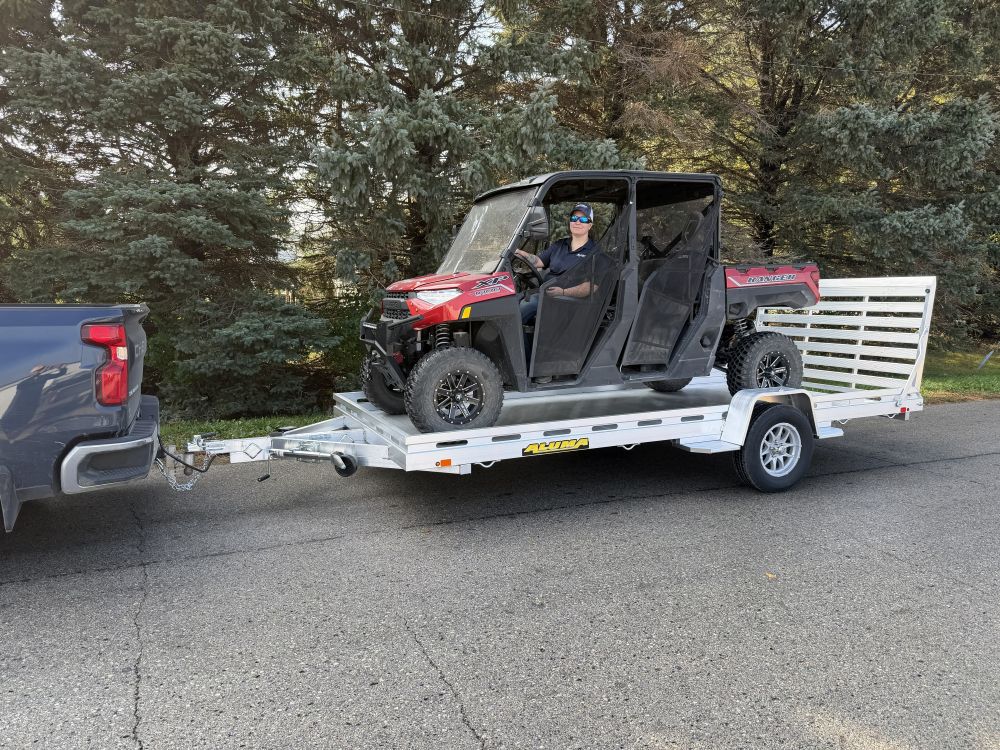

8015S-EL-TG (Standard Tailgate) |
930# |
81″ x 182“ |
15″ |
|
8015S-EL-BT (Bi-fold Tailgate) |
960# |
81″ x 182“ | 15″ |
Covered under our industry-leading all-inclusive 5 year warranty!
Equipment Details
Standard
|
4400# Rubber torsion axle – Electric brakes – Easy lube hubs (4250# GVWR) |
|
ST205/75R15 Radial tires |
| Aluminum wheels, 5-4.5 BHP |
| Aluminum fenders |
| Extruded aluminum floor |
|
8.5″ Front & side retaining rails |
| A-Framed aluminum tongue, 42″ long with 2″ coupler |
|
7) Tie down loops (3per side, 1 front center) |
| LED Lighting package, safety chains |

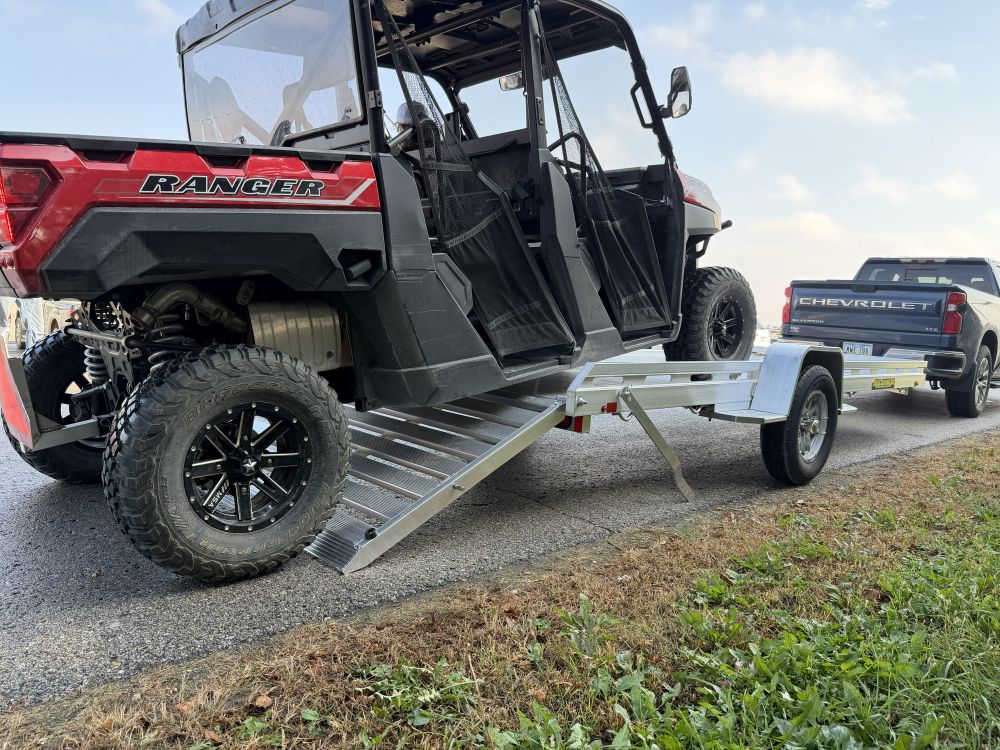

| Fender Steps |
| Tongue Handle |
| Receptacle Holder |
| Swivel tongue jack, 1200# capacity |
| Aluminum tailgate – 75.5″ wide x 44″ long / Bi-fold – 75.5″ x 60″ long |
| Overall width = 101.5″ |
| Overall length = 210″/233″/240″ |
Optional
|
20-0002059 |
Rack Set, Front Solid Set 24″ Tall 80 Series |
|
50-0003658 |
Loop Tie Down .625″ x 8″ |
|
60-0000650 |
2000# RTD Stainless Steel Small |
|
20-0000208 |
Storage Box 45Deg. 82TILT, 78 |
|
20-0000081 |
Legs Stabilizer 7800 Complete Pair |
|
20-0001930 |
Tire Carrier Spare, 77 Slotted Series |
|
20-0000080 |
Tire Carrier Flat Mount 5 Bolt |
|
60-0001492 |
15″ Tire, Silver Eagle Aluminum 5 bolt |
High quality parts and accessories from Aluma add functionality and versatility to your trailer. Click here to see more!
