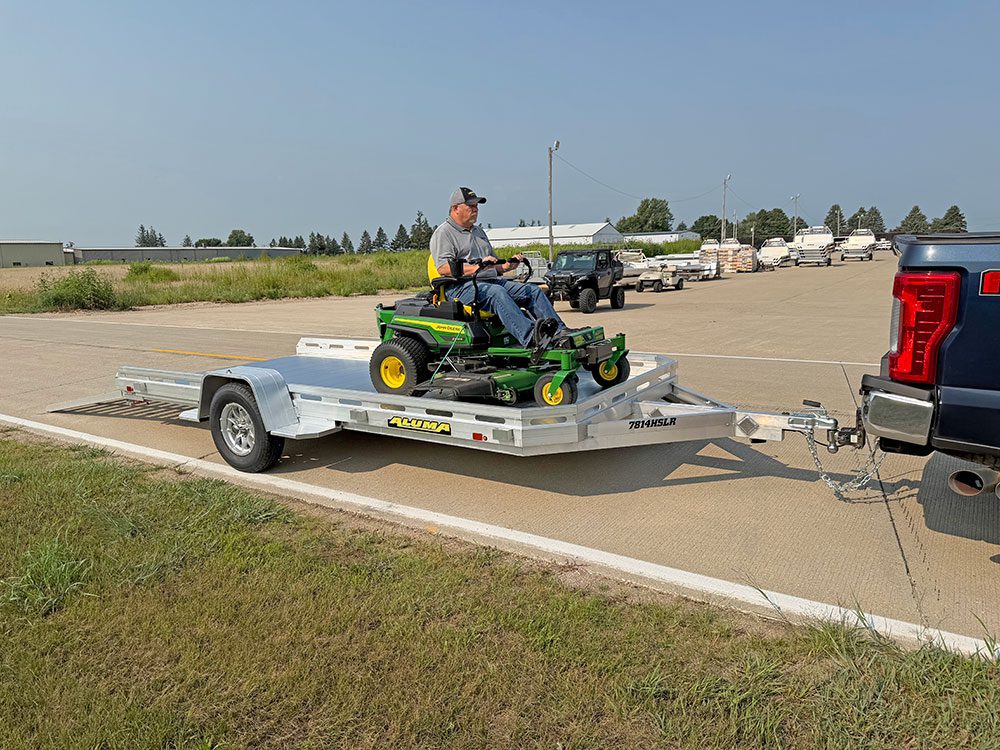

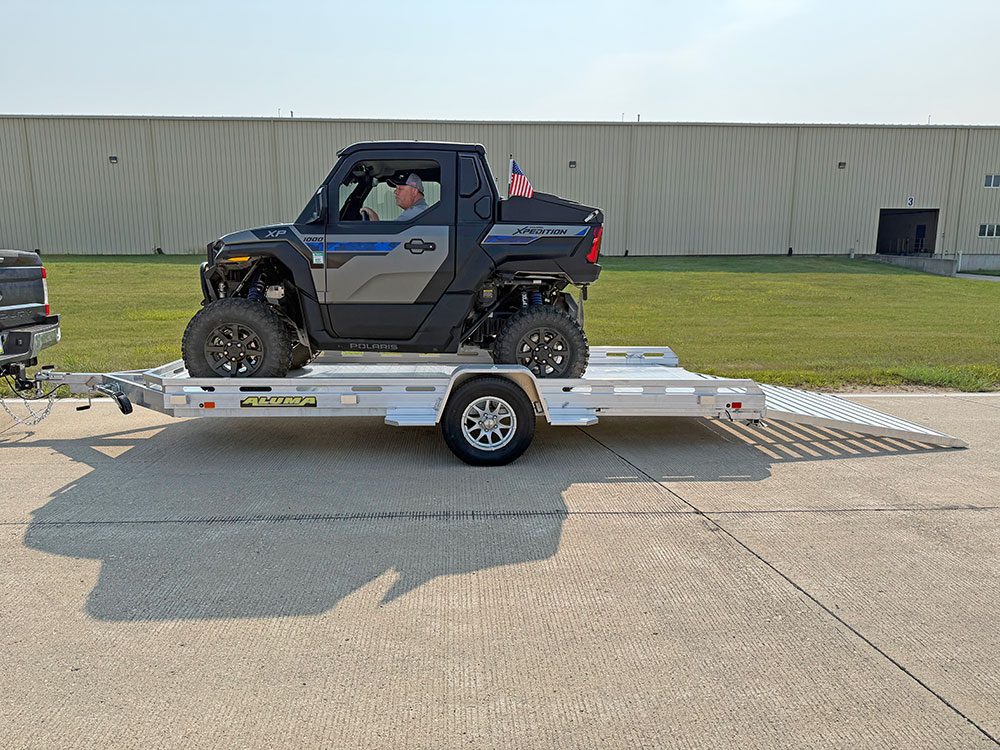

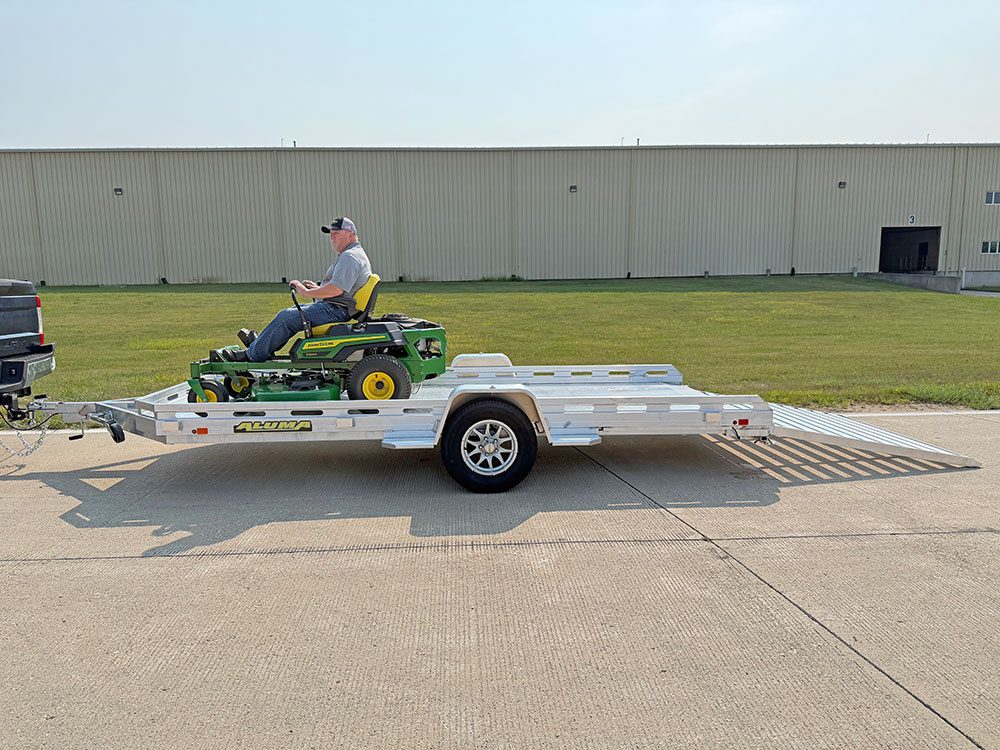

7812-14HSLR-S-R Trailer

All aluminum construction
(excluding axle & coupler)

Covered under our industry-leading all-inclusive 5 year warranty!

Equipment Details

3500# Rubber torsion axle (rated at 2990#) – No brakes – Easy lube hubs

ST205/75R14 Radial tires

Aluminum Wheels, 5-4.5 BHP

Aluminum fenders

Extruded aluminum floor

8.5″ Front & side retaining rails

A-Framed aluminum tongue, 48″ long with 2″ coupler

6) Stake pockets (3 per side)

4) Tie down loops (2 per side)

Fender Steps

Tongue Handle

Receptacle Holder

Swivel tongue jack, 1200# capacity

LED Lighting package, safety chains

75″ W x 70″ L Slide Out Ramp

Overall width = 101.5″

Overall length = 225″

20-0001941	Rock Guard Front Assembly 77/78 Slotted Frame 24″
20-0001939	Rack Set, Open Side Solid Set 24″ Tall 77/78 Slotted Frame 12’L
20-0001932	Rack Set 12″ Solid Front and Sides 77/78 12’L Slotted Frame
20-0001933	Rack Set 24″ Solid Front and Sides 7712’L Slotted Frame
20-0001948	Rack Set, Open Side Set 24″ Tall 77/78 Slotted Frame 14’L
20-0001950	Rack Set, Solid Side Set 12″ Tall 77/78 Slotted Frame 14’L
20-0001947	Rack Set, Solid Side Set 24″ Tall 77/78 Slotted Frame 14’L
50-0004765	U-Channel 4.0625″ x 1.8125″ x .25″ x 2.5″ – Lg. Stake Pocket
50-0003658	Loop Tie Down .625″ x 8.25″
60-0000650	2000# RTD Stainless Steel
20-0000208	Storage Box 45Deg. 82TILT, 78
20-0000081	Legs Stabilizer 7800 Complete Pair
20-0001930	Tire Carrier Spare 77 Slotted Series
20-0000080	Tire Carrier Flat Mount 5 Bolt
60-0001490	Tire, Silver Eagle, Alum, ST205/75R14 LRD 14×5 5-4.5 Replaces 6
20-0001393	Upgrade 15″ Aluminum wheel and tire single axle
20-0001420	Upgrade Axle Electric Brake Single

High quality parts and accessories from Aluma add functionality and versatility to your trailer. Click here to see more!
