7800 Series Utility Trailers
All aluminum construction
(excluding axle & coupler)
*Shown with ramps
| Model | Weight | Bed Size | Tires |
| 7812TA-EL-R-RTD (Ramps) | 1050# | 77.5″ x 144″ | 14″ |
| 7814TA-EL-R-RTD (Ramps) | 1125# | 77.5″ x 173″ | 14″ |
| 7816TA-EL-R-RTD (Ramps) | 1175# | 77.5″ x 192″ | 14″ |
| 7818TA-EL-R-RTD (Ramps) | 1225# | 77.5″ x 221″ | 14″ |
| 7820TA-EL-R-RTD (Ramps) | 1275# | 77.5″ x 240″ | 14″ |
| 7822TA-EL-R-RTD (Ramps) | 1520# | 77.5″ x 268″ | 14″ |
| 7824TA-EL-R-RTD (Ramps) | 1570# | 77.5″ x 292″ | 14″ |
Covered under our industry-leading all-inclusive 5 year warranty!
| Model | Weight | Bed Size | Tires |
| 7812TA-EL-BT-RTD (Bi-fold Tailgate) | 1050# | 77.5″ x 144″ | 14″ |
| 7814TA-EL-BT-RTD (Bi-fold Tailgate) | 1125# | 77.5″ x 173″ | 14″ |
| 7816TA-EL-BT-RTD (Bi-fold Tailgate) | 1175# | 77.5″ x 192″ | 14″ |
| 7818TA-EL-BT-RTD (Bi-fold Tailgate) | 1225# | 77.5″ x 221″ | 14″ |
| 7820TA-EL-BT-RTD (Bi-fold Tailgate) | 1275# | 77.5″ x 240″ | 14″ |
| 7822TA-EL-BT-RTD (Bi-fold Tailgate) | 1520# | 77.5″ x 268″ | 14″ |
| 7824TA-EL-BT-RTD (Bi-fold Tailgate) | 1570# | 77.5″ x 292″ | 14″ |

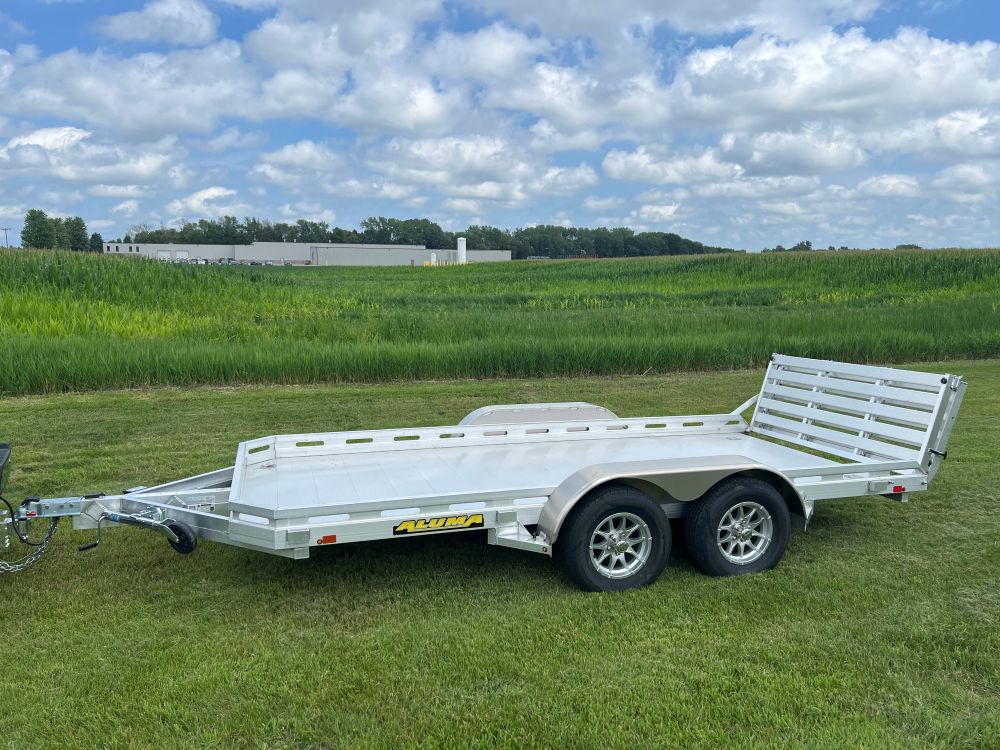

Shown above without bi-fold tailgate. Shown in gallery below.
Covered under our industry-leading all-inclusive 5 year warranty!
Equipment Details
Standard
| 2-3500# Rubber torsion axles – Easy lube hubs |
| Electric brakes, breakaway kit |
| ST205/75R14 Radial tires |
| Aluminum wheels, 5-4.5 BHP |
| Removable aluminum teardrop fenders |
| Extruded aluminum floor |
| 8.5″ Front & side retaining rails |
| A-Framed aluminum tongue, 48″ long with 2-5/16″ coupler |
| 59″ Bi-Fold Tailgate – BT models only (shown in gallery below) |
| 2) 5′ Aluminum ramps with storage underneath (7812 has 4′ ramps standard) – R models only |
| 6) Stake pockets (3 per side) (7812 – 4 stake pockets, 2 per side) |
| 4) Recessed tie rings, SS 2000# |
| 2) Drop-down rear stabilizer jacks (Not standard on 7812-14, optional) |
| Single-wheel swivel tongue jack, 1500# capacity |
| LED Lighting package, safety chains |
| Pull out ramps – 2) 4′ (7812) or 2) 5′ (7814, 7816, 7818) – R models only |
| Overall width = 101.5″ |
| Overall length = 197″ / 226″ / 245″ / 272″ / 294″ / 322″ / 346″ |
Optional
| Part # | Description |
|---|---|
| 20-0001941 | Front rock guard |
| 7800DT | Dove tail, 7800 Series |
| 20-0000202 | 7800 Series airdam assembly |
| 50-0004765 | Extra stake pockets |
| 50-0003658 | Tie down loop |
| 60-0000650 | Recessed Tie Down SS 2,000# |
| 60-0000267 | Tongue handle |
| 20-0000208 | 45° Storage box |
| 20-0001930 | Spare tire mounting bracket, side rail mount, 5-bolt |
| 20-0000080 | Spare tire mounting bracket, flat mount |
| 60-0001490 | 14″ Aluminum spare wheel & tire |
| 20-0001454 | Hydraulic surge brakes |
| 20-0001394 | 15″ Alum wheel & tire upgrade (tandem) |
| 60-0001492 | 15″ Aluminum spare wheel & tire – 5 bolt |
High quality parts and accessories from Aluma add functionality and versatility to your trailer. Click here to see more!
