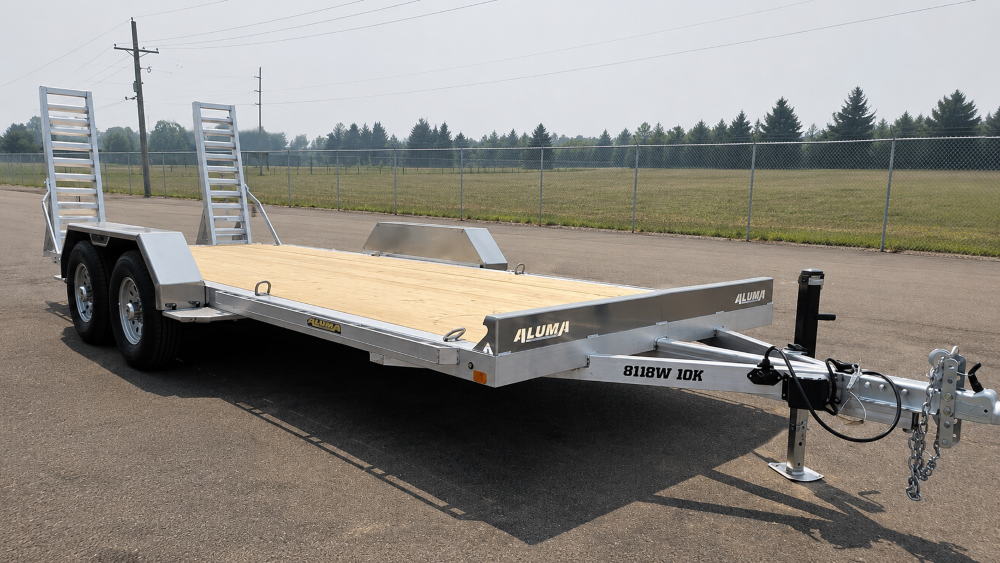

8116W-8118W 10K Series
All aluminum construction
(excluding axle & coupler)
| Model | Weight | Bed Size | Tires |
| 8116W-10K-TA-EL-R-RTD (Ramps) | TBD | 81″ x 197″ | 15″ |
| 8118W-10K-TA-EL-R-RTD (Ramps) | 1945# | 81″ x 220.5″ | 15″ |
Covered under our industry-leading all-inclusive 5 year warranty!
Equipment Details
Standard
| 2-5200# Rubber torsion axles – Easy lube hubs (9990# GVWR) |
| Electric brakes, breakaway kit |
| ST225/75R15 Radial tires |
| Aluminum wheels, 6-5.5 BHP |
| Aluminum removable fenders |
| 2 x 8 #1 graded pressure treated floor |
| 6″ heavy duty frame rail |
| A-Framed aluminum tongue, 48″ long with 2-5/16″ adjustable coupler |
| Tongue Handle |
| Receptacle Holder |
| Fender Steps |
| 2) 16″ wide x 5′ long hinged aluminum ramps |
| Rub rail welded to stake pockets on sides |
| 6) Bolt on heavy tie downs 16′, 8 Bolt on heavy tie downs 18′ |
| Padded tongue jack |
| LED Lighting package, safety chains |
| Overall width = 101.5″ |
| Overall length = 265″ / 289″ |
Optional
| Part # | Description |
|---|---|
| 20-0000208 | Storage box 45Deg. 82TILT, 78 |
| 20-0000005 | Spare Tire Carrier Package 6″ 6 Bolt Vertical |
| 60-0001494 | Tire, Silver Eagle, Alum, ST225/75R15 LRE 15×6-6-5.5 Re |
High quality parts and accessories from Aluma add functionality and versatility to your trailer. Click here to see more!
